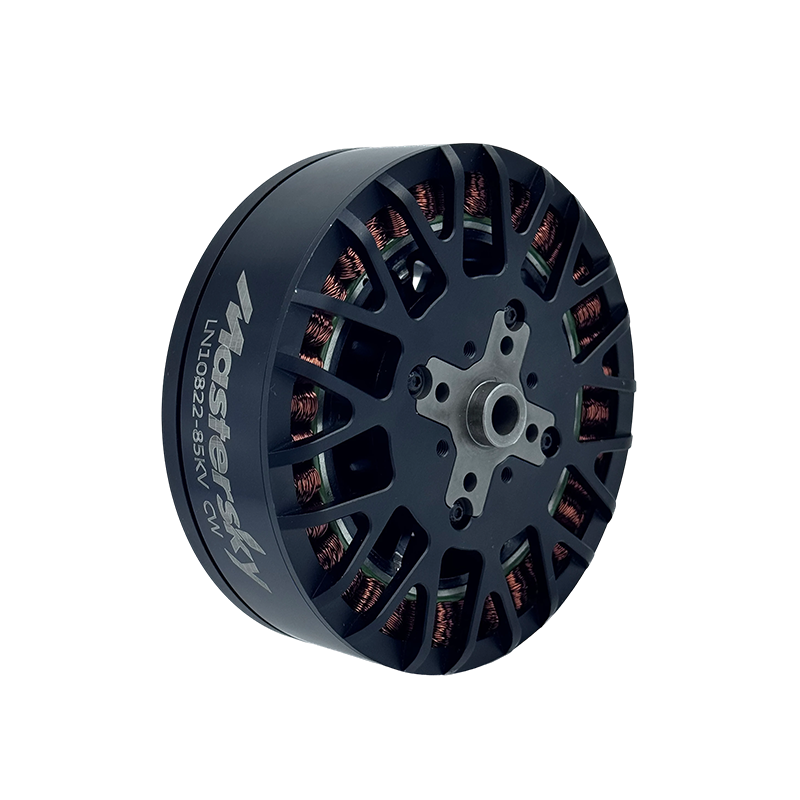

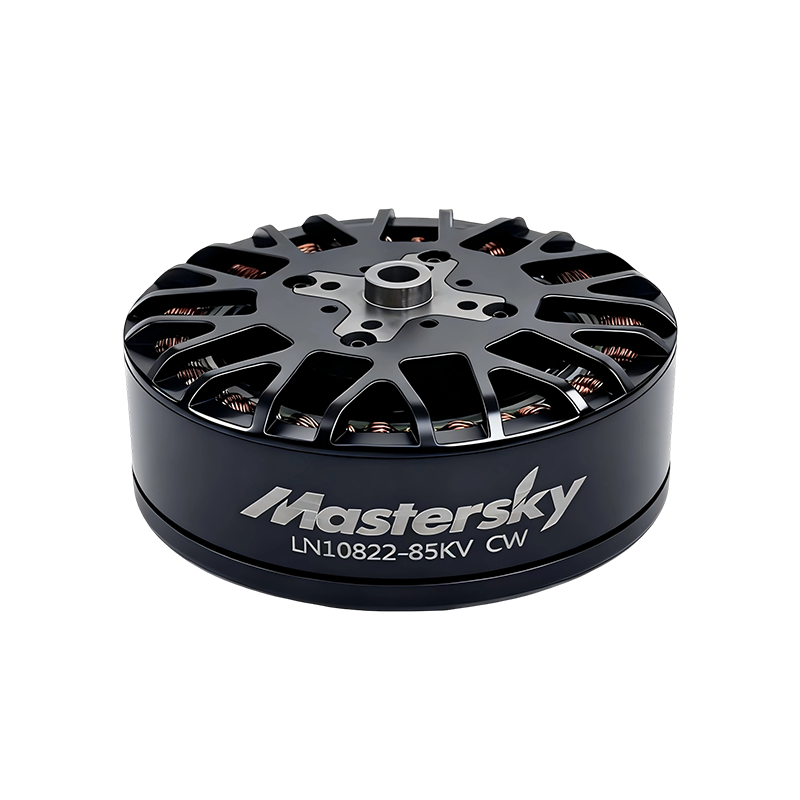

WIM10822 (X11 PLUS) brushless motor for Drones/eVTOL

0/0

WIM10822 (X11 PLUS) brushless motor for Drones/eVTOL

Description

The WIM10822 (X11 PLUS) is a flagship heavy-duty brushless motor engineered for ultra-heavy-lift industrial drones and large eVTOL aircraft. Designed to operate under extreme stress, it boasts a rugged, industrial-grade architecture with an oversized shaft to ensure maximum structural integrity and safety. The motor provides exceptional reliability, efficient heat dissipation, and smooth operation, making it highly dependable for the most demanding missions. Fully RoHS compliant and featuring a universal mounting design for seamless integration, the WIM10822 is purpose-built to power the next generation of super-heavy cargo platforms and extreme-payload aerial vehicles.

Contact Us

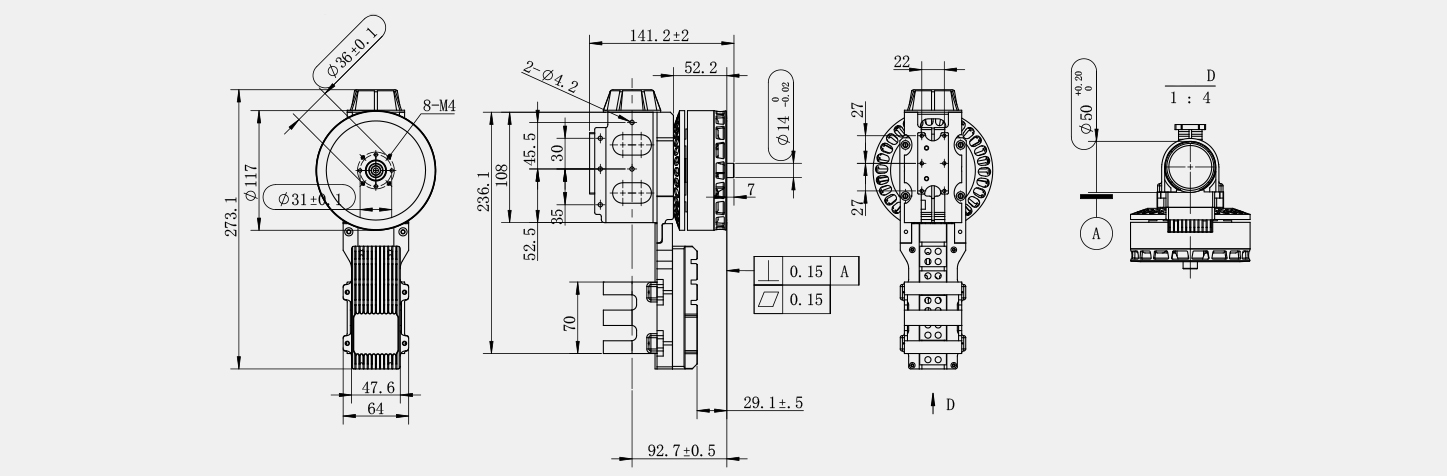

2D&3D

Retek

  • Parameter

  • Inquiry

  • 10822

    Electric Spec.
    KV Battery Spec. Max. Thrust Force (KG) Prop Weight (KG) System Weight (KG) Max Current (A) Max Con Current (A) Motor Dim (mm) Stator Dim (mm) Mounting Dim (mm) Prop (inch)
    85 14S-18S 37.5 15-18 2.85 146 50 φ116*42.5 φ108*2 8-M4*10 43"

    Thrust Testing Data
    Propeller (inch) Voltage (V) Throttle (%) Thrust (KG) Current (A) Power Input (W) Speed (RPM) Efficiency (%) Torque (N·m) Power Output (W)
    43" 54V 33% 7175 11.3 614.7 1485 11.7 3.37 523.3
    35% 7885 13.1 710.4 1557 11.1 3.7 603
    37% 8965 15.9 862.1 1660 10.4 4.21 731.7
    39% 9740 18 975.6 1730 10 4.58 829.2
    42% 10875 21.6 1148.8 1827 9.5 5.12 978.9
    45% 12280 26.2 1432.2 1927 8.8 5.97 1232.5
    48% 14000 30.9 1670.7 2071 8.4 6.59 1428.8
    51% 15300 35.2 1907.5 2165 8 7.19 1630.3
    54% 17035 42.4 2295.7 2303 7.5 8.11 1956.6
    57% 18715 47.8 2585.4 2396 7.2 8.76 2197
    60% 19810 52.1 2819.9 2466 7 9.26 2390.1
    63% 21560 59.3 3211.7 2574 6.7 10.06 2710.2
    66% 23030 65.7 3557.4 2662 6.5 10.73 2990.1
    69% 24795 73.8 3992.3 2763 6.2 11.54 3339.4
    72% 26215 80.5 4358.1 2842 6 12.2 3630.7
    75% 27825 88.5 4790.5 2928 5.8 12.95 3971.1
    78% 29535 97.4 5270.8 3016 5.6 13.75 4343.3
    81% 30945 105.1 5683.9 3087 5.4 14.41 4656.6
    84% 31435 107.8 5830.9 3111 5.4 14.63 4766.6
    87% 33235 118.2 6389.4 3198 5.2 15.45 5173.2
    90% 34920 128.3 6938.7 3279 5 16.18 5554.3
    100% 37670 146.1 7895.3 3414 4.8 17.24 6162.9
