Home / Markets / Drone Motors / LN3115 900KV FPV Brushless Motor 6s 8~10 Inch Propeller Long Range Drone

LN3115 900KV FPV Brushless Motor 6s 8~10 Inch Propeller Long Range Drone

0/0

LN3115 900KV FPV Brushless Motor 6s 8~10 Inch Propeller Long Range Drone

Description

The LN3115 900KV FPV brushless motor is a high-performance motor designed for long-range flights. It supports 6S batteries and is compatible with 8 to 10-inch propellers. This motor is widely used in FPV (First-Person View) drones, particularly for long-duration flight requirements. With a KV rating of 900, it delivers efficient rotation speed, providing higher thrust for long-range flight.

900KV Brushless Motor: Efficient and stable, ideal for larger propellers, enhancing flight stability and endurance.
Supports 6S Battery: Provides higher voltage and stronger thrust, ensuring smoother flights and extended flight time.
Compatible with 8-10 Inch Propellers: Designed for larger propellers, perfect for long-range flights, offering greater thrust and longer flight times.
Optimized for FPV Flights: Specifically designed for FPV drones, ensuring stable, long-duration flights for long-range missions.
Durable Construction: Built with high-quality materials to withstand prolonged flights and harsh conditions.

The LN3115 900KV FPV brushless motor is primarily used in FPV drones for long-duration flights, making it ideal for applications such as long-range aerial photography, remote monitoring, exploration, and racing. It provides stable thrust and longer flight times, making it the perfect choice for professional aerial drones and long-endurance drone enthusiasts.

Contact Us

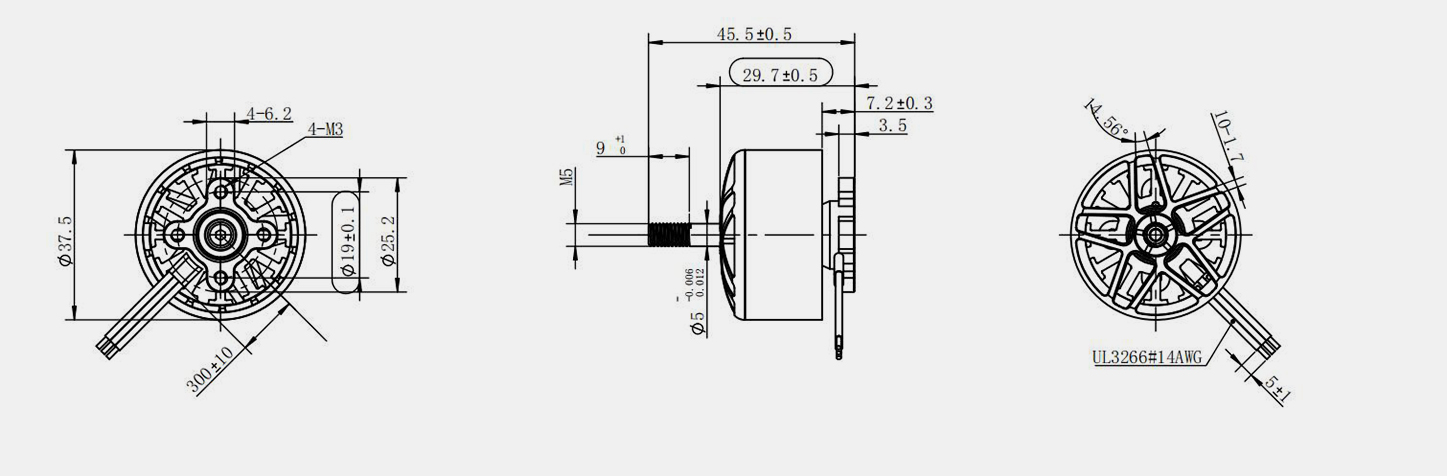

2D&3D

Retek

  • Parameter

  • Inquiry

  • Electric Spec.

    Max. P

    (W)

    Voltage

    (V)

    Max. I.

    A)

    		 KV

    No-load Current

    (A)

    Resistance

    (mΩ)

    		 Poles

    Motor Dim.

    (mm)

    Stator Dim.

    (mm)

    Mounting

    (mm)

    N.W.

    (g)

    Prop.

    (inch)
    1526  25.2  65  900  1.2  53  14  φ37.5*29.7 φ31*15 M3-19*19 108  10”
    Thrust Testing Data
    Propeller KV Value Throttle

    Voltage

    (V)

    Current

    (A)

    Thrust Force

    (g)

    Speed

    (RPM)

    Power

    (W)

    Efficiency

    (g/W)

    Temp.

    (℃)
    GF1050*3 700  10% 24.01  0.3  34  1572  6.60  5.22  44.70
    20% 24.01  1.0  165  3264  23.27  7.08  42.20
    30% 23.99  2.15  362  4689  51.48  7.03  40.00
    40% 23.97  4.08  649  6014  97.70  6.64  39.00
    50% 23.95 7.43 1026 7418 177.97 5.76 38.40
    60% 23.92 13.22 1502 8913 316.10 4.75 38.70
    70% 23.87  19.80  1967  10165  472.60  4.16  40.00
    80% 23.81  28.17  2476  11328  670.70  3.69  46.20
    90% 23.75  37.82  2958  12316  898.25  3.29  55.60
    100% 23.68  48.52  3419  13184  1148.91  2.98  73.00
    GF1050*3 740  10% 24.02  0.3  41  1665  7.71  5.34  24.30
    20% 24.01  1.1  183  3396  26.46  6.92  24.50
    30% 24.00  2.47  416  4853  59.33  7.01  24.70
    40% 23.97  4.74  724  6262  113.55  6.38  25.40
    50% 23.95 8.44 1105 7710 202.21 5.47 26.50
    60% 23.91 15.25 1620 9311 364.70 4.44 28.90
    70% 23.86  22.51  2117  10552  537.16  3.94  33.00
    80% 23.80  31.80  2620  11704  756.72  3.46  39.80
    90% 23.73  42.03  3086  12649  997.35  3.09  50.30
    100% 23.67  53.69  3542  13434  1270.82  2.79  65.90
    GF1050*3 900  10% 24.02  0.4  52  1822  8.91  5.82  25.20
    20% 24.01  1.2  208  3603  29.41  7.07  25.40
    30% 24.00  2.78  461  5126  66.62  6.93  25.00
    40% 23.97  5.35  804  6608  128.22  6.27  26.60
    50% 23.95 9.68 1245 8114 231.86 5.37 27.70
    60% 23.90 17.55 1830 9811 419.47 4.36 29.70
    70% 23.84  25.90  2373  11100  617.53  3.84  33.90
    80% 23.76  37.24  2985  12387  884.85  3.37  39.90
    90% 23.68  50.08  3550  13413  1185.89  2.99  49.90
    100% 23.61  64.66  4066  14221  1526.50  2.66  64.40
