LN10018 Series 12S Brushless Drone Motor (90KV / 100KV) – 5kg Thrust High-Power UAV Motor

0/0

LN10018 Series 12S Brushless Drone Motor (90KV / 100KV) – 5kg Thrust High-Power UAV Motor

Description

The LN10018 Series 12S Brushless Drone Motor is a high-performance UAV motor designed for heavy-lift multirotors and professional drones. Available in 90KV and 100KV options, this motor delivers up to 5kg of thrust, making it ideal for aerial photography, cargo drones, and industrial UAV applications.

Engineered with precision winding technology and premium materials, the LN10018 ensures efficient power output, smooth operation, and superior heat dissipation. Its durable construction guarantees reliable and long-lasting performance, even under demanding flight conditions. Perfect for both hobbyist drone enthusiasts and professional UAV builders seeking high-power, stable, and efficient drone motors.

Contact Us

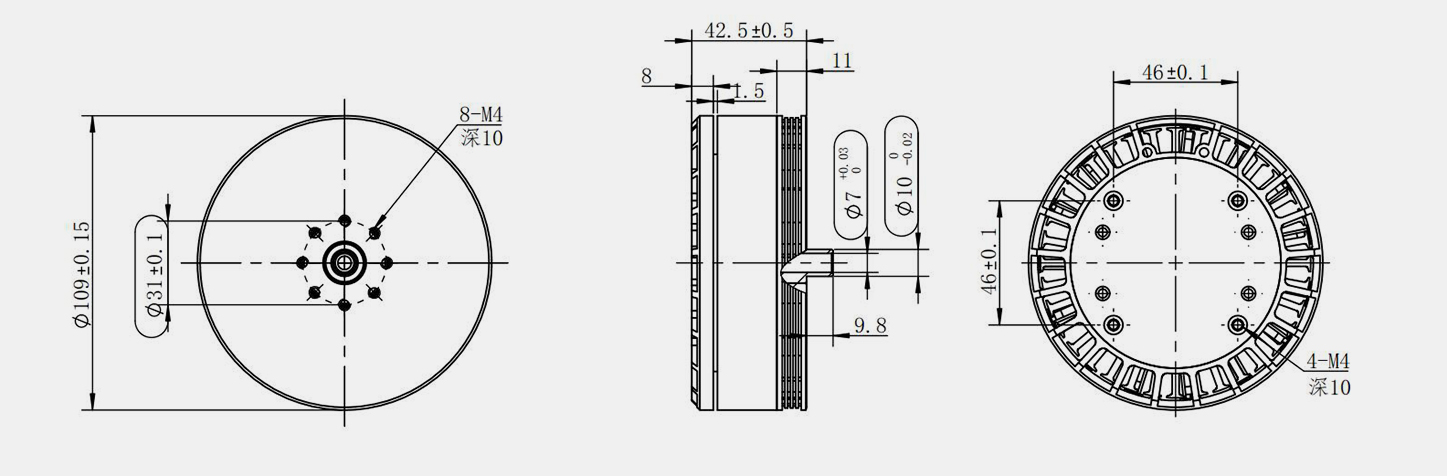

2D&3D

Retek

  • Parameter

  • Inquiry

  • Electric Spec.
    KV Battery Spec.

    Max. Thrust Force

    (KG)

    Recom.Takeoff
    Weight

    (KG)

    System Weight

    (KG)

    Max. Current

    (A)

    Max. Con. Current

    (A)

    Motor Dim.

    Stator Dim.

    (mm)

    Mounting Dim.

    (mm)

    Prop.

    (inch)
    85  12S-14S 26.5  11-13 1.45  100  15  φ109*42.5 φ100*18 8-M4*10 36"
    Thrust Testing Data
    Propeller Voltage(V) Throttle（%) Thrust(g) Current(A) Power(W) Speed(RPM) Efficiency(g/W)
    36" 53.6V 40% 5072  8.31  444.9  1815  11.19
    53.6V 45% 6212  1.21  600.3  2014  10.16
    53.6V 50% 7466  4.61  782.5  2208  9.47
    53.6V 52% 8017  6.21  868.3  2286  9.08
    53.6V 54% 8642  7.91  959.4  2367  8.89
    53.6V 56% 9202  9.82  1061.2  2446  8.57
    53.6V 58% 9832  1.82  1168.4  2523  8.31
    53.6V 60% 10451  3.92  1281.1  2604  8.01
    53.6V 62% 11139  6.22  1404.3  2682  7.78
    53.6V 64% 11810  8.53  1527.6  2755  7.55
    53.6V 66% 12516  1.13  1666.9  2837  7.37
    53.6V 68% 13188  3.53  1795.6  2912  7.16
    53.2V 70% 13866  6.44  1951  2993  6.95
    53.1V 75% 15943  4.95  2406.6  3189  6.45
    53.0V 80% 17968  4.48  2915.8  3384  6
    53.6V 90% 24287  2.6  4427.4  3780  5.23
    53.6V 100% 26462  100  5338.5  4047  5.05
