LN2207 1700KV 1900KV 2400KV Brushless Motor for RC Drone FPV

0/0

LN2207 1700KV 1900KV 2400KV Brushless Motor for RC Drone FPV

Description

The LN2207 is a brushless motor with multiple KV options (1700KV/1900KV/2400KV), designed specifically for RC drones and FPV (First-Person View) systems. The "2207" in the model number indicates the stator size (22mm diameter, 7mm height). The KV value represents the RPM per volt under no load (e.g., 1700KV = 1700 RPM per volt), enabling adaptation to diverse flight performance requirements.

Multi-KV Flexibility: Offers 1700KV, 1900KV, and 2400KV options, allowing users to optimize for speed, torque, or battery voltage.

Efficient Thermal Management: Brushless design minimizes friction, paired with lightweight materials (e.g., aluminum alloy housing) for enhanced heat dissipation and durability.

FPV Racing Optimization: High RPM responsiveness and low latency make it ideal for FPV racing drones requiring precise control and burst power.

FPV Racing Drones: High KV values (e.g., 2400KV) pair with small propellers for extreme speed and agile maneuvers.

Aerial Photography & Long-Range Drones: Lower KV values (e.g., 1700KV) with larger propellers deliver higher torque and energy efficiency for extended flight times.

DIY Drone Projects: Multi-KV compatibility supports hobbyists in customizing powertrains for varying frame sizes and flight styles.

Contact Us

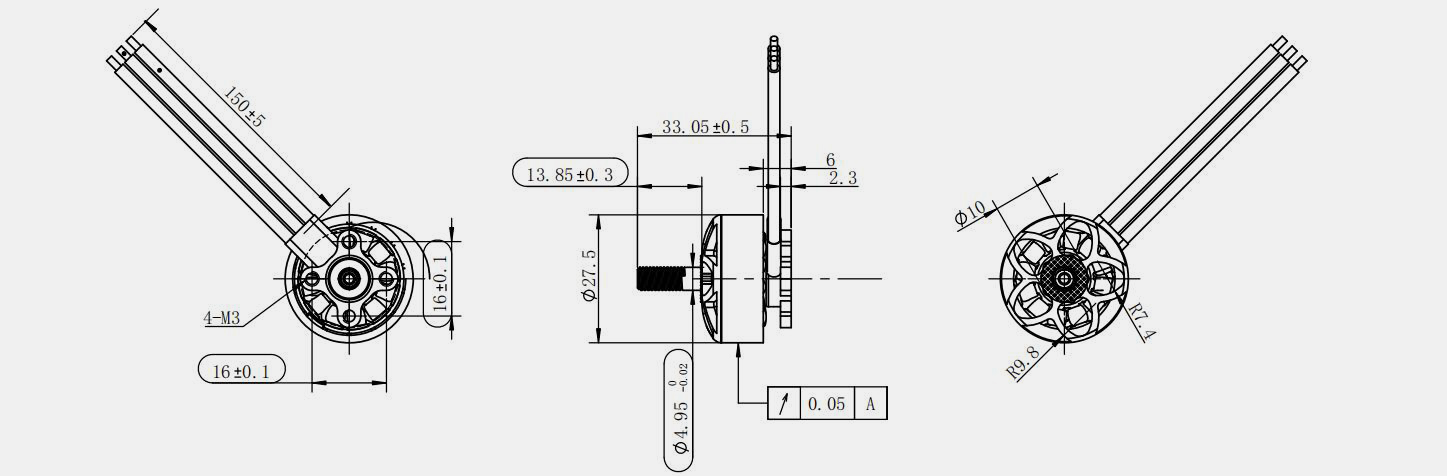

2D&3D

Retek

  • Parameter

  • Inquiry

  • Electric Spec.
    Max. P(W) Voltage(V) Max. I.(A) KV No-load Current(A) Resistance(mΩ) Poles Motor Dim.(mm) Stator Dim.(mm) Mounting (mm) N.W.(g) Prop.(inch)
    960(7S) 2S-7S 40(7S) 1800  1  60  14  φ27.5*11.7 φ22*8 M3-19*16 36  5"~6"
    Thrust Testing Data
    Propeller kV Value Throttle(%) U(V) Current(A) Thrust(g) Power(W) Efficiency(g/W)
    5055  1800KV 50%   10.68  767  256.3  2.992
    60%   16.3  1025  391.2  2.620
    70% 24 22.52 1222 540.5 2.261
    80% 30.22 1454 725.3 2.005
    90%   38.13  1627  915.1  1.778
    100%   40  1690  960.0  1.760
    5045  1800KV 50%   8.92  670  214.1  3.130
    60%   13.78  899  330.7  2.718
    70% 24 18.94 1110 454.6 2.442
    80% 25.29 1342 607.0 2.211
    90%   32.86  1580  788.6  2.003
    100%   33.1  1580  794.4  1.989
    5055  1950KV 50%   8.38  679  201.1  3.38
    60%   13.31  914  319.4  2.86
    70% 24 19.34 1169 464.2 2.52
    80% 26.24 1384 629.8 2.20
    90%   33.33  1587  799.9
    100%   39  1745  936.0  1.86
    5045  2100KV 50%   8.13  540  170.7  3.163
    60%   11.93  716  250.5  2.858
    70% 21  16.68 925 350.3 2.641
    80% 22.08 1114 463.7 2.403
    90%   28.75  1335  603.8  2.211
    100%   36.55  1544  767.6  2.012
    5055 2100KV 60% 21 14.13 830 296.7 2.797
    70% 20.15 1063 423.2 2.512
    80%   27.28  1277  572.9  2229
