LN4214 380KV 6-85 UAV Brushless Motor For 13 Inch Racing Drones

0/0

LN4214 380KV 6-85 UAV Brushless Motor For 13 Inch Racing Drones

Description

The LN4214 380KV 6-85 UAV Brushless Motor is a high-performance motor designed specifically for 13-inch racing drones. Utilizing brushless motor technology, it offers efficiency, stability, and reliability, enabling long-duration operation under heavy load, fulfilling the power requirements of professional racing drones.

High Efficiency: The brushless motor technology reduces mechanical friction, enhancing efficiency.
Strong Stability: The 380KV speed and high torque output ensure outstanding stability during racing.
Durability: Optimized design allows the motor to withstand prolonged high-load operation, suitable for intense flight conditions.
Strong Compatibility: Designed for 13-inch drones, offering precise power control for excellent flight performance.

The LN4214 380KV 6-85 UAV Brushless Motor is widely used in racing drones, especially those with a 13-inch frame. It is ideal for high-intensity drone racing events. With its high efficiency and powerful output, it provides quick response and precise control, ensuring flight stability and speed.

Contact Us

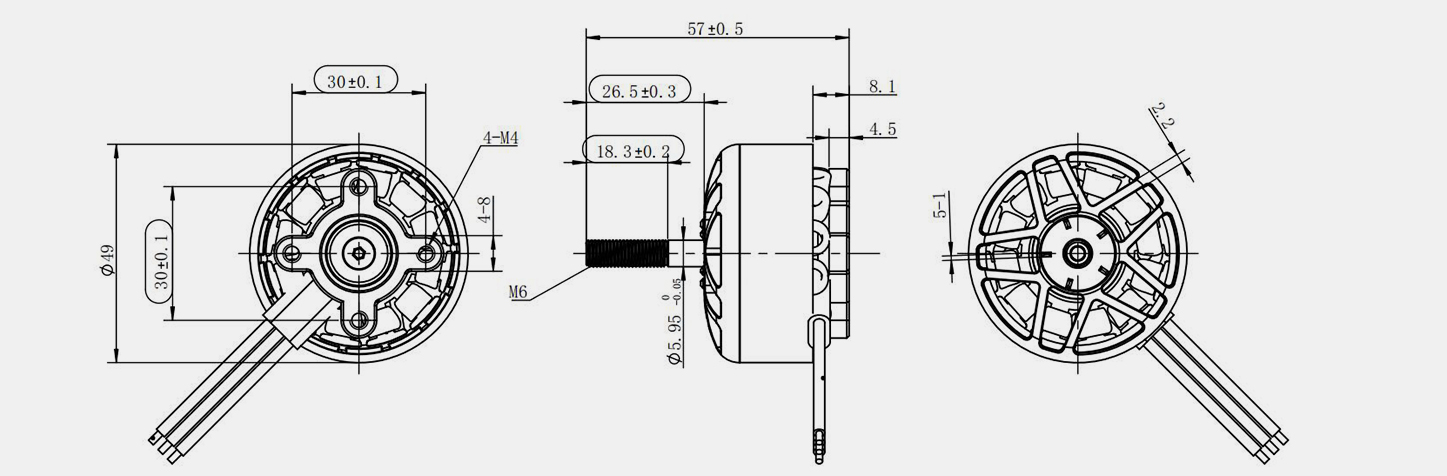

2D&3D

Retek

  • Parameter

  • Inquiry

  • Electric Spec.

    Max. P

    (W)

    Voltage

    (V)

    Max. I.

    A)

    		 KV

    No-load Current

    (A)

    Resistance

    (mΩ)

    		 Poles

    Motor Dim.

    (mm)

    Stator Dim.

    (mm)

    Mounting

    (mm)

    N.W.

    (g)

    Prop.

    (inch)
    2121 24 34 380  1.5 576 14  φ49*32.5 φ42*14 M4-30*30 235  13"~15"
    Thrust Testing Data
    Propeller KV Value

    Throttle

    (%)

    Voltage

    (V)

    Current

    (A)

    Speed

    (RPM)

    Thrust Force

    (KG)

    Torque

    (N.M)

    Input Power

    (W)

    Efficiency

    (G/W)
    GEMFAN
    1308*3     		 380kV 10% 24 0.184 859 0.0279 0.010 4.4 6.309
    20% 23.99 0.623 1788 0.1207 0.031 14.9 8.082
    30% 23.99 1.437 2708 0.2961 0.072 34.5 8.600
    40% 23.98 2.588 3536 0.5128 0.116 62 8.278
    50% 23.96 4.434 4393 0.7981 0.179 106.2 7.525
    60% 23.94 7.498 5286 1.1673 0.258 179.5 6.508
    70% 23.92 11.142 6106  1.5620 0.344 266.5 5.864
    80% 23.89 15.405  6835 1.9759 0.433 368 5.370
    90% 23.85 20.898 7573  2.4480 0.534 498.5 4.911
    100% 23.81 26.668 8213  2.8856 0.630 635.1 4.544
    GEMFAN
    1310*3     		 380kV 10% 24.01  0.18 847  0.0239  0.014  4.3  5.539
    20% 24  0.708 1781 0.1251 0.042 17 7.367
    30% 23.99  1.668 2664  0.3160 0.093 40 7.900
    40% 23.98 3.104 3458 0.5413 0.152 74.4 7.278
    50% 23.96 5.481 4293 0.8513 0.2310 131.3 6.490
    60% 23.99 9.362 5159 1.2510 330 224.1 5.585
    70% 23.98  13.856 5924  1.6492 0.437 331.3 4.979
    80% 23.95  19.353 6644  2.1044 0.549 462 4.555
    90% 23.93  25.502 7287  2.5593 0.666 607.8 4.211
    100% 23.88 32.034 7869  2.9946 0.768 762.1 3.929
    GEMFAN
    1310*3     		 640kV 10% 24.81 0.409 1336 0.0768  0.0299 9.8000  7.8180
    20% 23.73  1.865 2708  0.3374 0.1001 44.7000 7.5440
    30% 23.63 4.803  3946  0.7408 0.2051 115.0000 6.4420
    40% 23.53 9.285 5007 1.2049 0.3214 222.2000 5.4240
    50% 23.42 17.318 6131 1.8117 0.4789 413.5000 4.3840
    60% 23.5 28.207 7158 2.4977 0.6519 671.5000 3.7200
    70% 23.62 40.854 8027  3.1604 0.8238 969.3000 3.2610
    80% 23.67  58.755 8840  3.8649 1.0092 1388.3000 2.7840
    90% 23.  73.77 9411  4.3715 1.1529 1736.0000 2.5180
    100% 23.7 90.573 9878  4.8917 1.2935 2121.3000 2.3060
