3212 Gimbal Motor

The 3212 brushless gimbal motor is a compact high-torque direct-drive BLDC motor tailor-made for professional three-axis camera gimbals, UAV aerial photography payloads, industrial vision stabilization and robotic sensor rotation systems. Featuring a 32mm outer diameter and 12mm thickness frameless hollow-shaft structure, it balances miniaturized size and outstanding load capacity, perfectly solving the weight and space limits of medium-size gimbal assemblies.

Adopting optimized 12-slot 14-pole magnetic circuit and high-grade neodymium magnets, this motor drastically cuts cogging torque to deliver ultra-smooth low-speed rotation without jitter or vibration. It supports sinusoidal FOC closed-loop control, offering millisecond-level response to external shaking and sub-degree positioning accuracy, which ensures stable, blur-free footage during dynamic drone flight, handheld shooting and mobile inspection missions. The central hollow bore allows neat internal cable routing, simplifying gimbal wiring and avoiding wire twisting during 360° continuous rotation.

Built with high-precision silicon steel stator and low-resistance custom windings, the 3212 motor achieves over 88% energy efficiency with low heat generation, supporting long-hour continuous operation without performance decay. Its sturdy aluminum alloy shell resists minor collision and temperature fluctuation, adapting to outdoor, industrial and vehicle-mounted working environments.

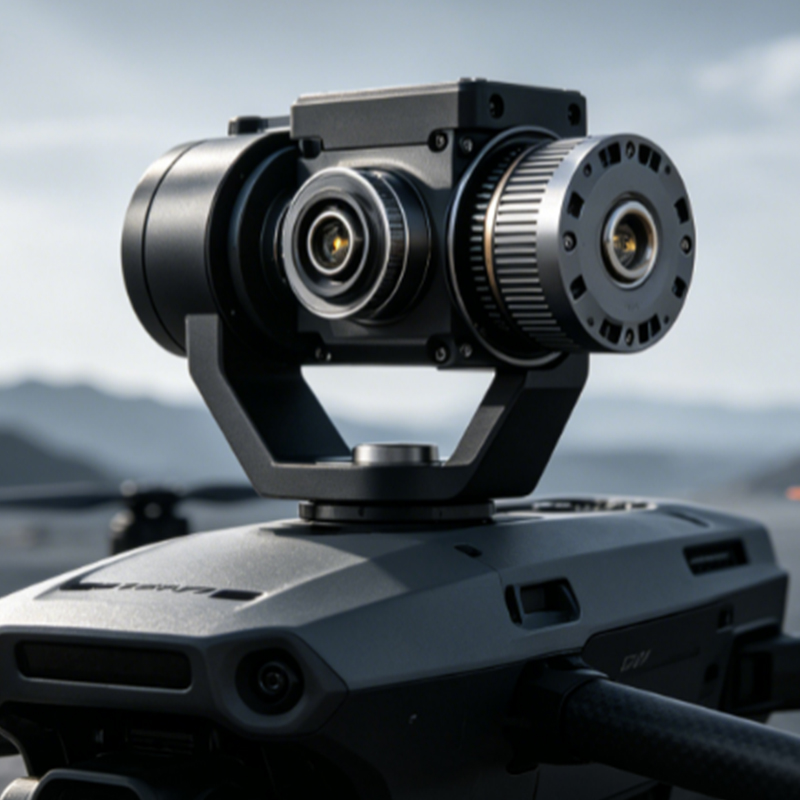

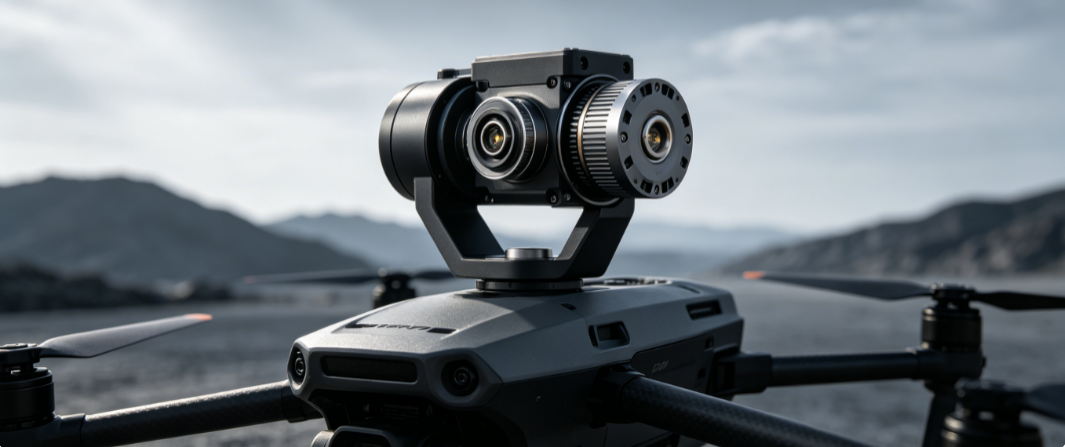

Compatible with mainstream gimbal controllers and magnetic encoders, it fits mirrorless cameras, action cameras and small industrial sensors. Ideal for aerial cinematography drones, survey inspection UAVs, handheld stabilizers and robot vision gimbals, the 3212 gimbal motor is a cost-effective core component for reliable high-precision stabilization systems.
