1802 Gimbal Motor

Product introduction

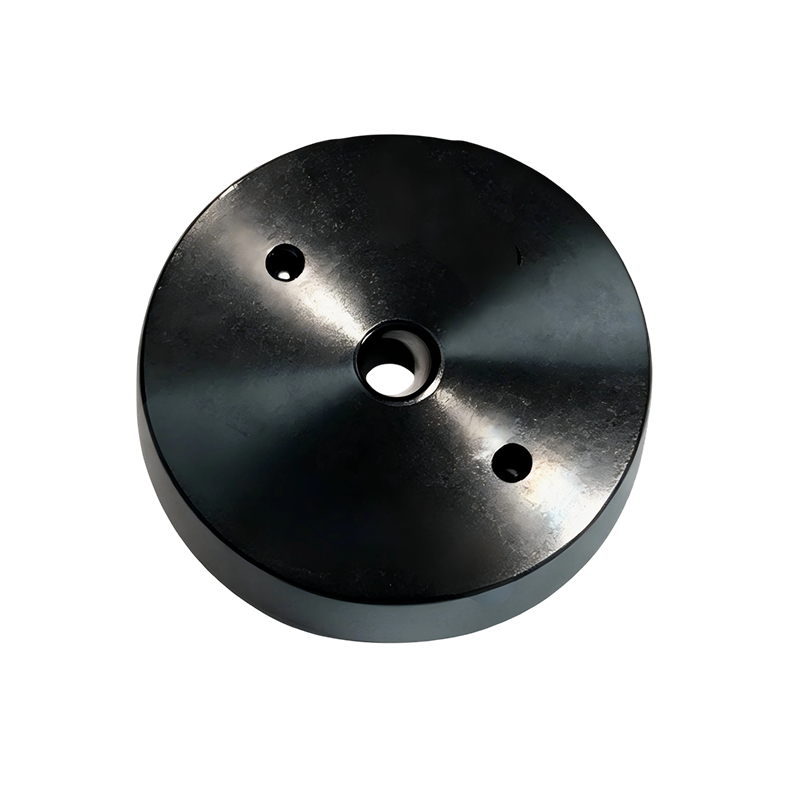

Its key advantage is, first and foremost, its extremely compact and lightweight body. The unit is small in size and features a sleek matte black finish with precise craftsmanship, which effectively reduces the overall weight of the gimbal, making it suitable for tight installation spaces and facilitating lightweight structural designs for small devices.

Furthermore, it balances smooth operation with stable output. The motor’s electrical performance has been professionally tuned to ensure smooth, noise-free, and vibration-free operation. It features a high insulation safety rating and maintains stable temperature control during prolonged continuous operation, preventing issues such as torque decay or image drift. The gimbal’s fine-tuning response is linear and precise, delivering outstanding stabilization performance.

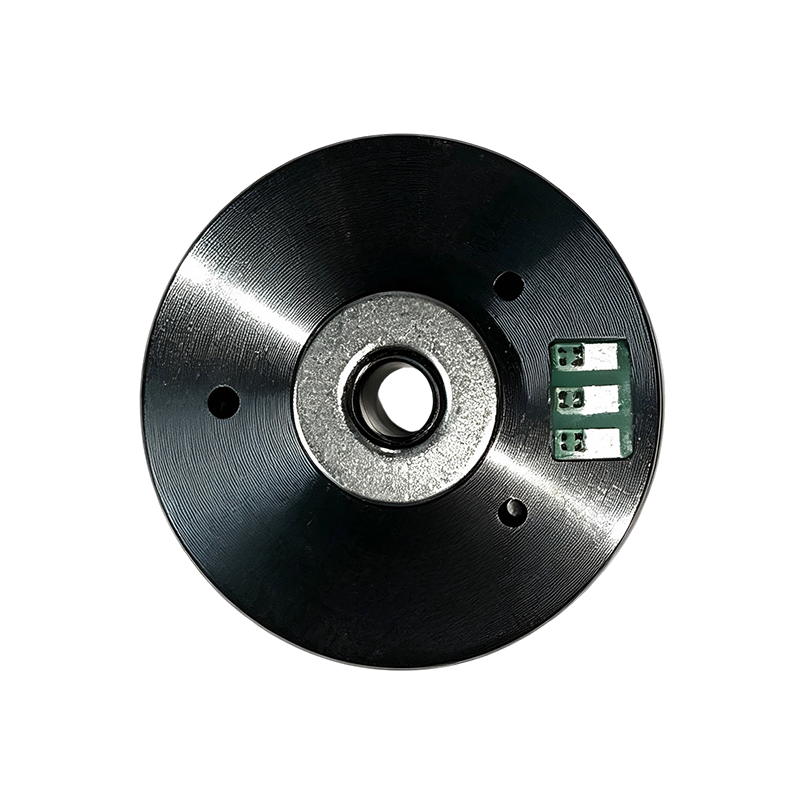

The design incorporates a proven slot-pole configuration paired with a sturdy bearing structure, resulting in low vibration and low noise across the entire unit. It is capable of handling operating conditions such as frequent start-stop cycles and prolonged hovering by gimbals. With multiple standard mounting hole specifications, it offers high versatility and is compatible with mainstream micro-gimbal mounts on the market. The standard three-phase pad layout facilitates convenient wiring and debugging, making it compatible with various gimbal driver control boards and ensuring simple, user-friendly mass production assembly.

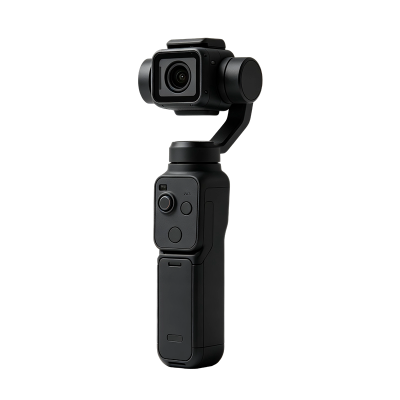

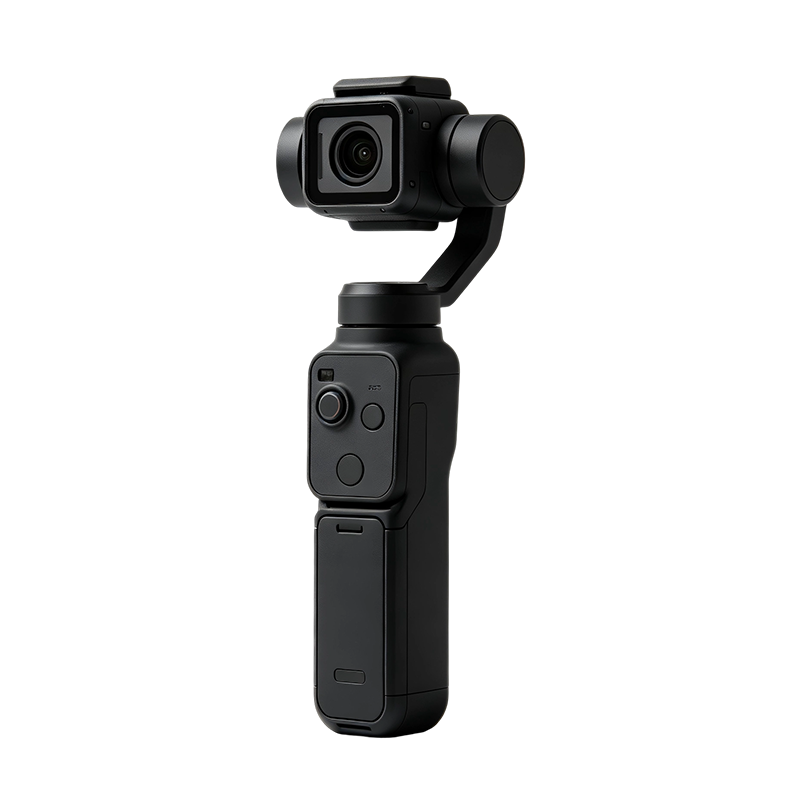

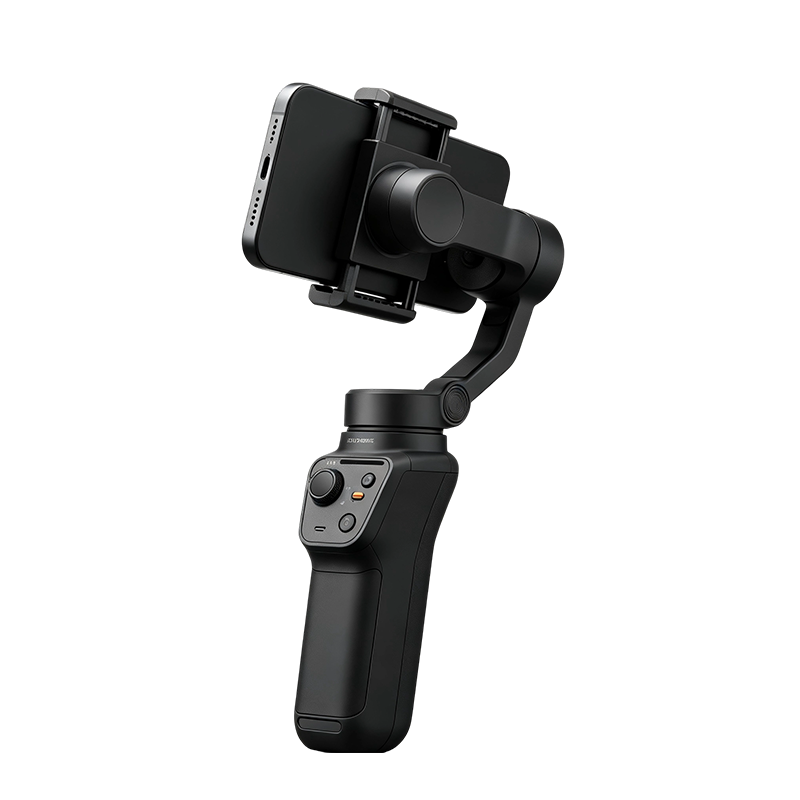

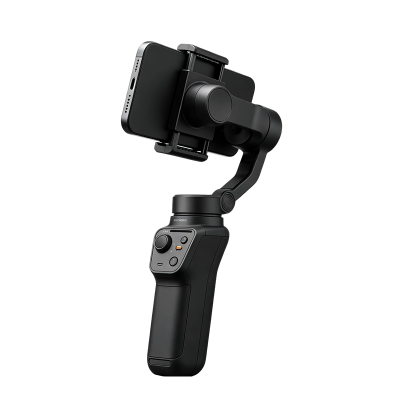

Overall, the LN1802—with its compact size, smooth and quiet operation, high durability, and highly compatible mounting design—offers a stable and reliable lightweight power solution for micro camera gimbals, making it the motor of choice for mini aerial photography and handheld mini gimbals.

General Specification:

• Rated Voltage: 6VDC
• Motor rotation direction: CCW
• Duty: S1, S2
• Operational Temperature: -20°C to +40°C
• Insulation Grade: Class B
• Bearing Type: durable brand ball bearings
• Optional shaft material: #45 Steel, Stainless Steel, Cr40
• Certification: CE, ETL, CAS, UL

Application：

Gimbal Motor

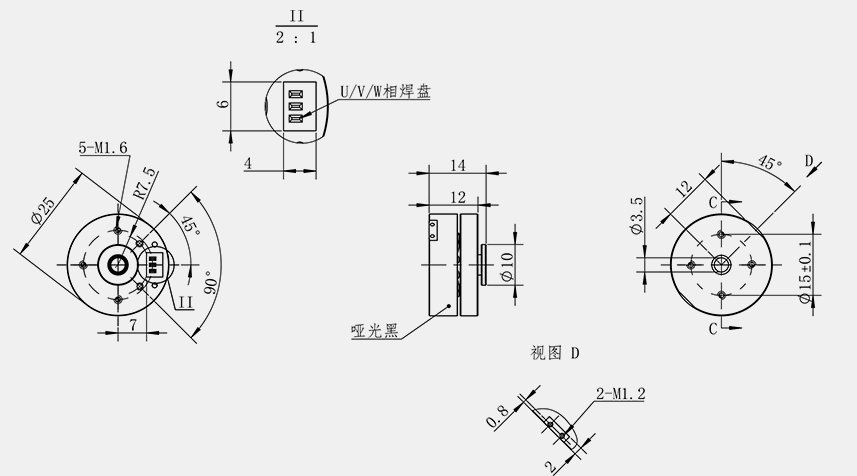

Dimension:

Parameters
