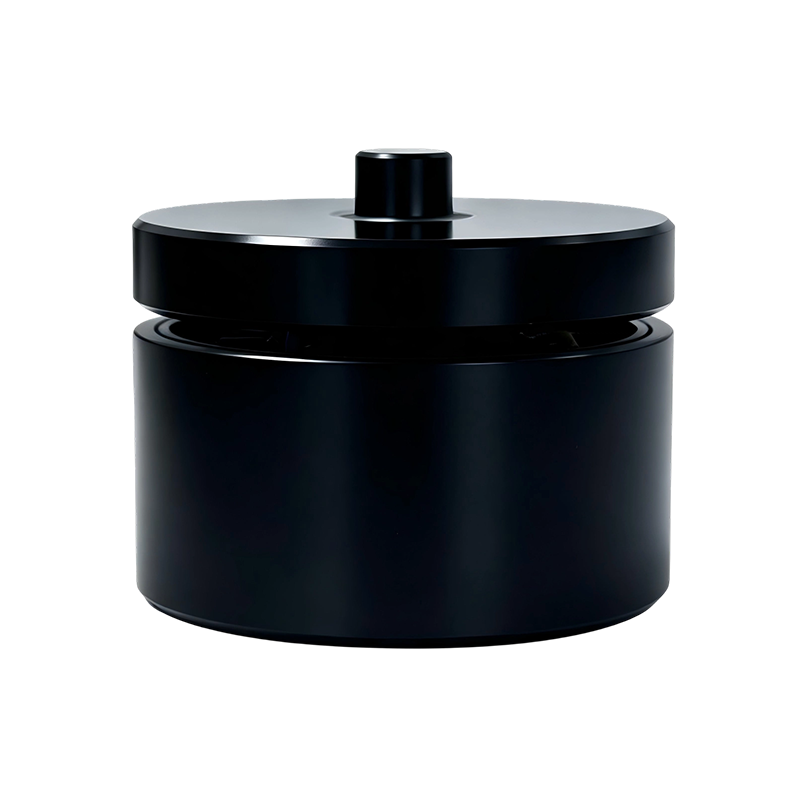

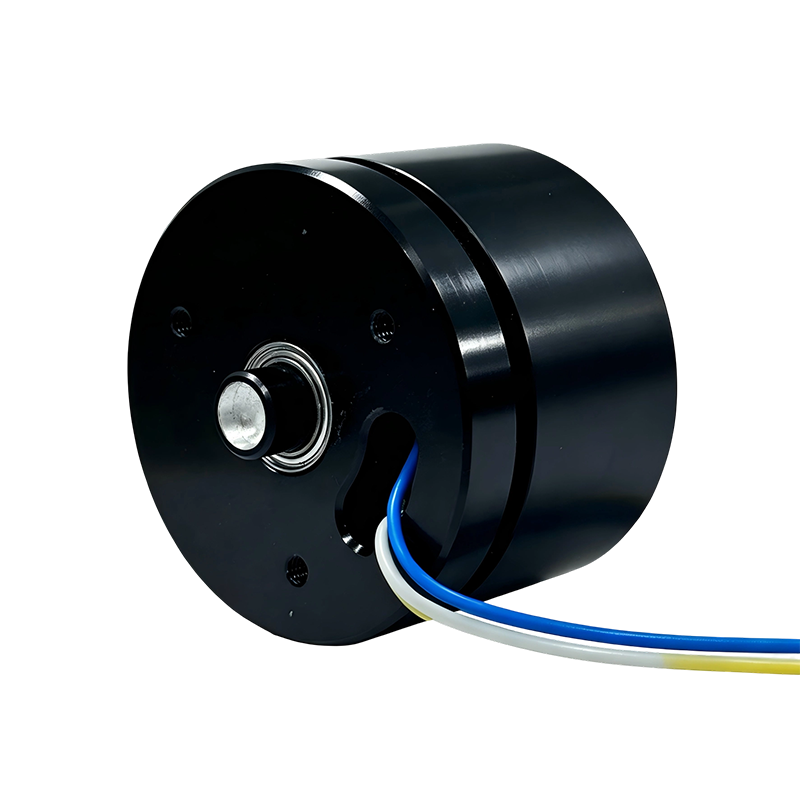

Gimbal Motor-LN3510D06-001

Product Details

Electrical and Power Parameters

The LN3510D06-001 features a rated operating voltage of 6 V DC and is compatible with various lithium battery-powered devices and DC regulated power supplies. It offers stable current control with a maximum no-load current of 0.2 A, a load-operating current of 0.85 A ± 10%, and smooth, controllable power output. The torque and speed performance are precisely calibrated: a no-load speed of 850 ± 10% RPM, a load-speed of 500 ± 10% RPM, and a rated output torque of 0.06 N·m. Its compact size delivers consistent torque output with uniform transmission response, making it ideal for precision adjustment mechanisms under light loads. The motor supports bidirectional rotation (CW – clockwise and CCW – counterclockwise) at the shaft end, featuring simple direction reversal control and suitability for reciprocating motion applications.

Manufacturing Precision and Structural Design

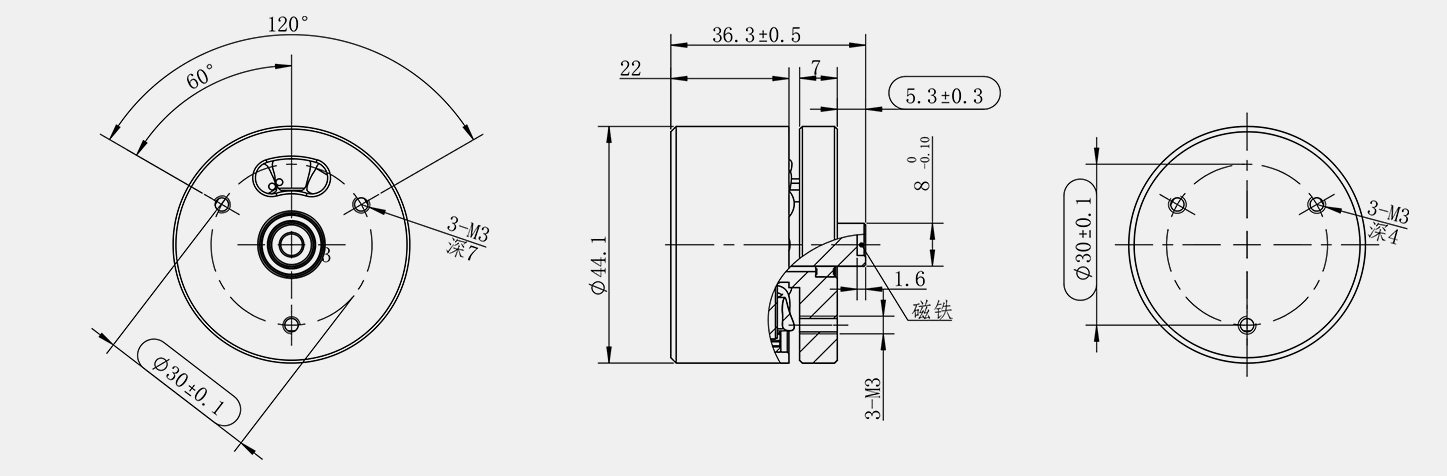

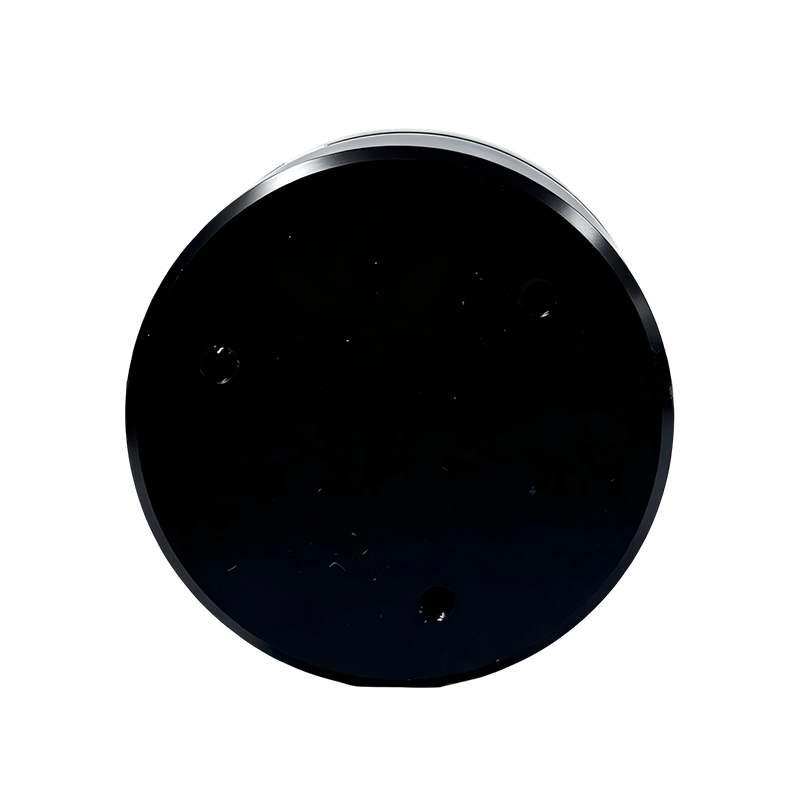

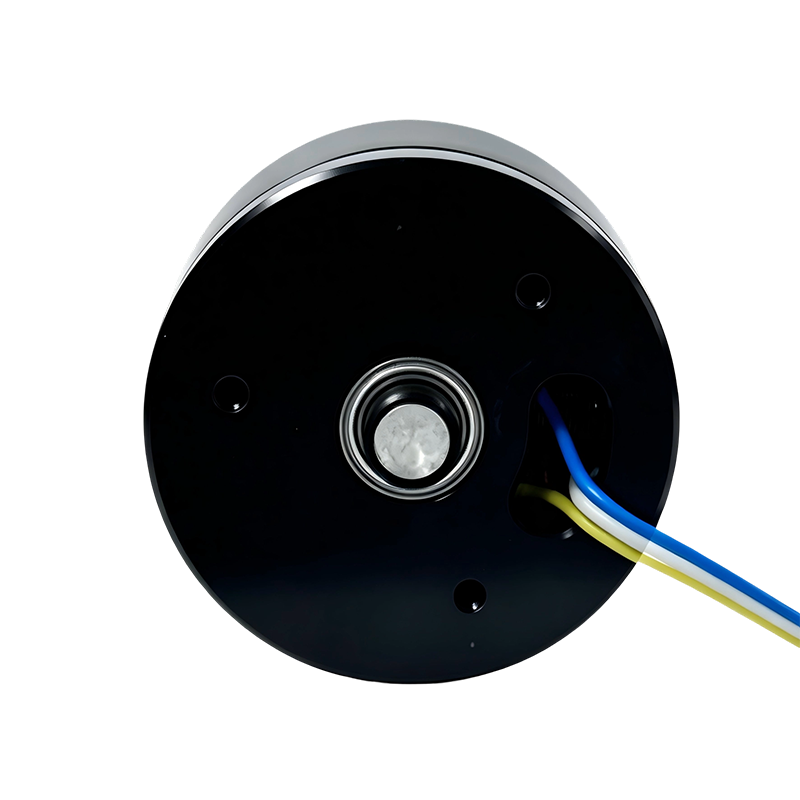

Product size specifications strictly comply with the GB/T 1804-2000 standard for unmarked dimensional tolerances of Grade M, with both linear and angular dimensions subjected to precise control, and key dimensional tolerances maintained at ±0.1 mm. The housing features a reserved 3×3 mm standard mounting thread hole and is designed with multi-angle mounting options (60°/120°) to accommodate tight internal installation spaces; transmission clearance is controlled within 0.01–0.2 mm, ensuring precise positioning without vibration due to minimal clearance. The drawings are rendered in 1:1 physical scale, demonstrating a compact, well-proportioned structure with high spatial efficiency.

The device exhibits stable and reliable mechanical performance, with an insulation class of CLASS F. It has passed the factory-certified ADC 600V/3mA/1Sec withstand voltage test, ensuring adequate insulation protection and compatibility with various electrical equipment applications. Its operational performance is outstanding: vibration levels ≤7 m/s, noise at 1-meter distance ≤75 dB (ambient background noise ≤45 dB), smooth operation without axial movement or hesitation noises, and no adverse phenomena such as odor or smoke during full operation.

The LN3510D06-001 is a micro-drive motor, integrating precision machining with stable electromagnetic design to deliver four key advantages: low power consumption, high accuracy, low noise levels, and long service life. It finds extensive applications in small smart home appliances, portable testing instruments, miniature actuator modules, compact automated transmission systems, and miniaturized intelligent devices. The company continues to specialize in micro-motor R&D, offering parameter customization tailored to specific equipment requirements and providing comprehensive one-stop micro-power solution packages.
