Brushless DC Motor for Electric Power Tools 28mm Diameter W28 Series

0/0

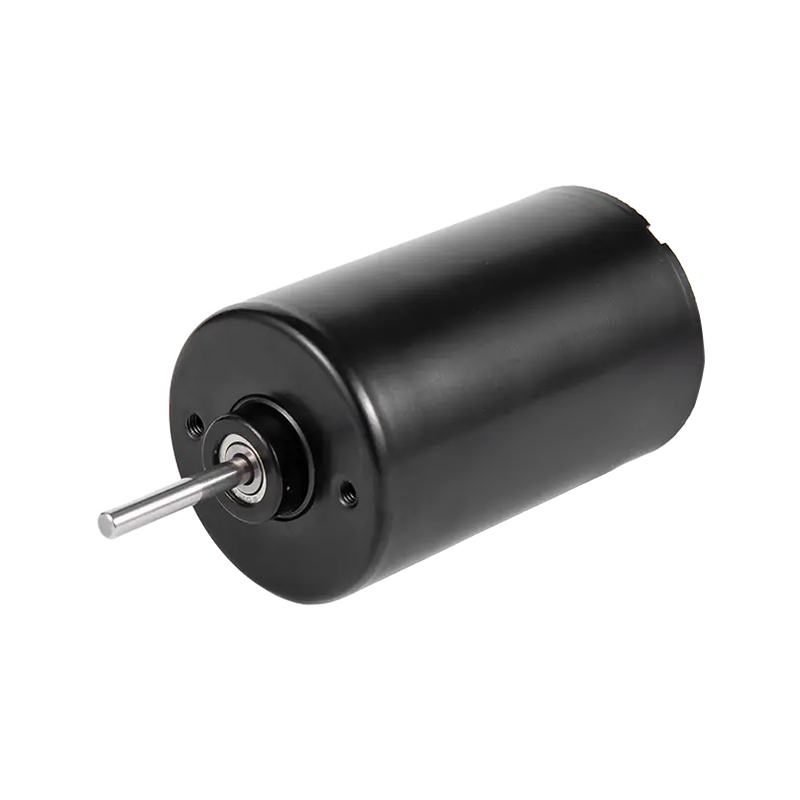

Brushless DC Motor for Electric Power Tools 28mm Diameter W28 Series

Description

The W28 series 28mm outer diameter brushless DC motor is a compact high-performance BLDC motor specially optimized for electric power tools, portable smart equipment, and miniature drive systems. Adopting mature internal brushless drive integrated structure, this motor delivers stable high-speed output, precise speed regulation, and reversible rotation control, with a slim cylindrical body and standardized mounting holes for easy equipment integration.

Contact Us
2D&3D

Retek

  • Parameter

  • Inquiry

  • Performance Parameters:

    Rated Operating Voltage: 24VDC

    Start-up Voltage: ≤3V, low voltage quick startup

    No-load Performance: Current ≤0.7A, speed 5000rpm ±5%

    Rated Load Performance (110g load): Current ≤0.3A, speed 4000rpm ±5%

    Rated Load Torque: ≥600g.cm, strong stable output torque for power tool load scenarios

    Built-in multi-signal control interface for all-in-one speed, feedback and rotation control

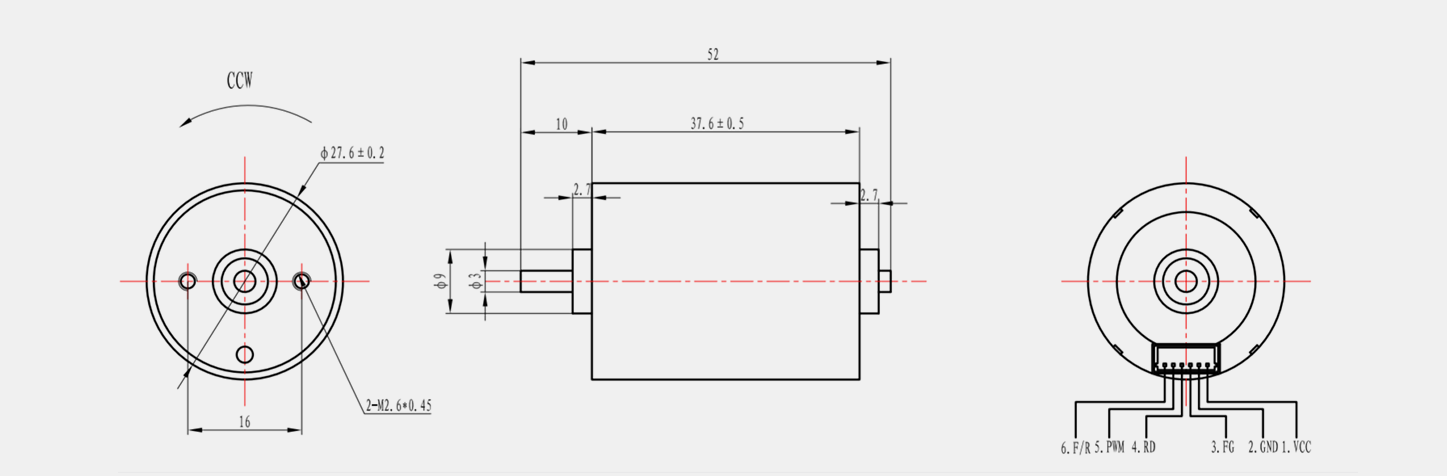

    Dimension:





    Application:

    Cordless electric power tools, mini electric screwdrivers, portable polishing/grinding tools, miniature automation drive modules, handheld intelligent beauty equipment, small household electric drive devices, precision miniature transmission equipment
