WS70

0/0

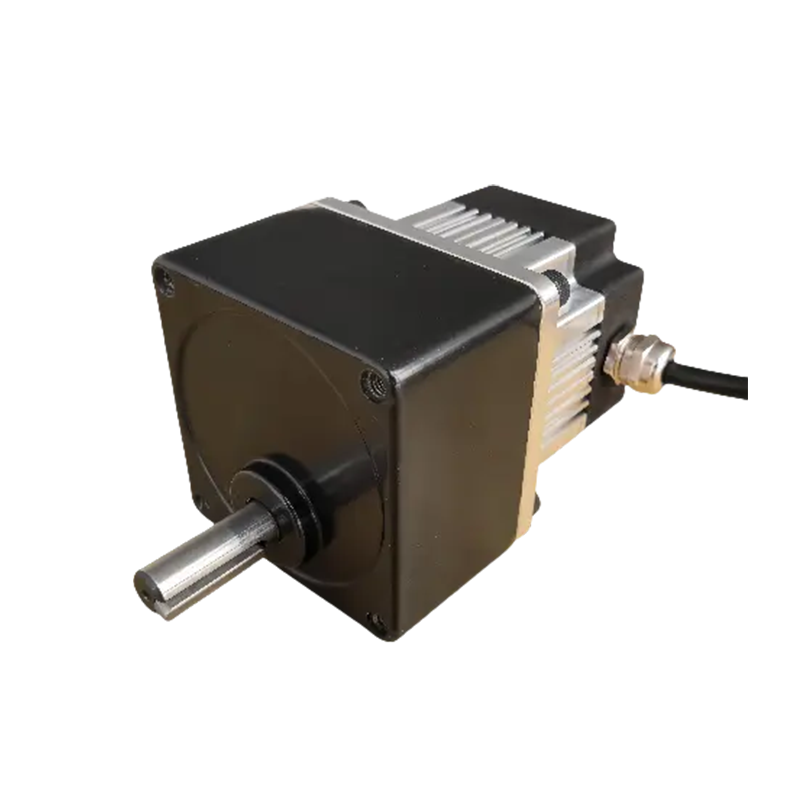

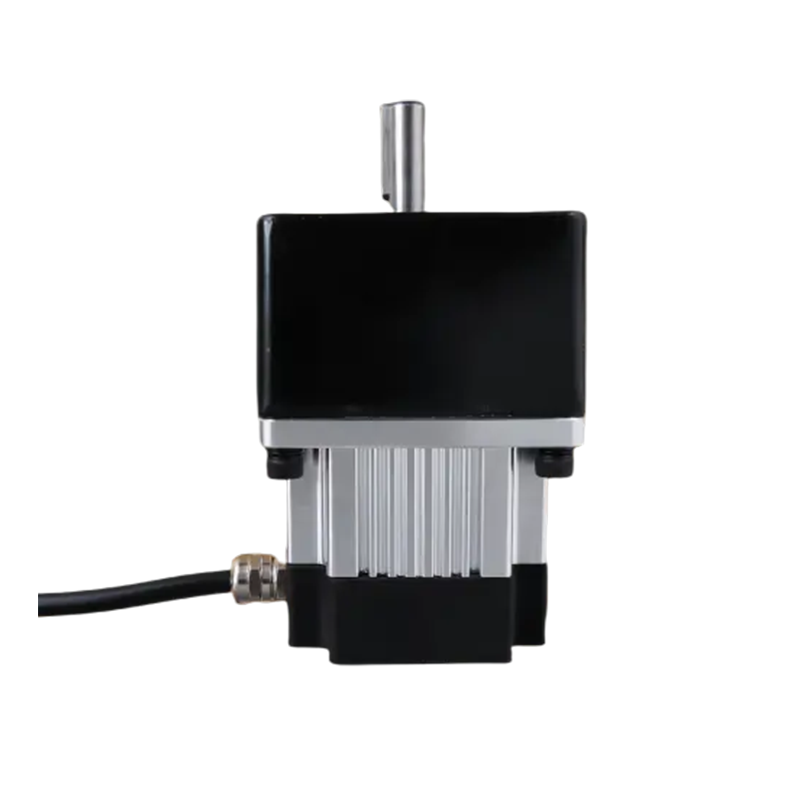

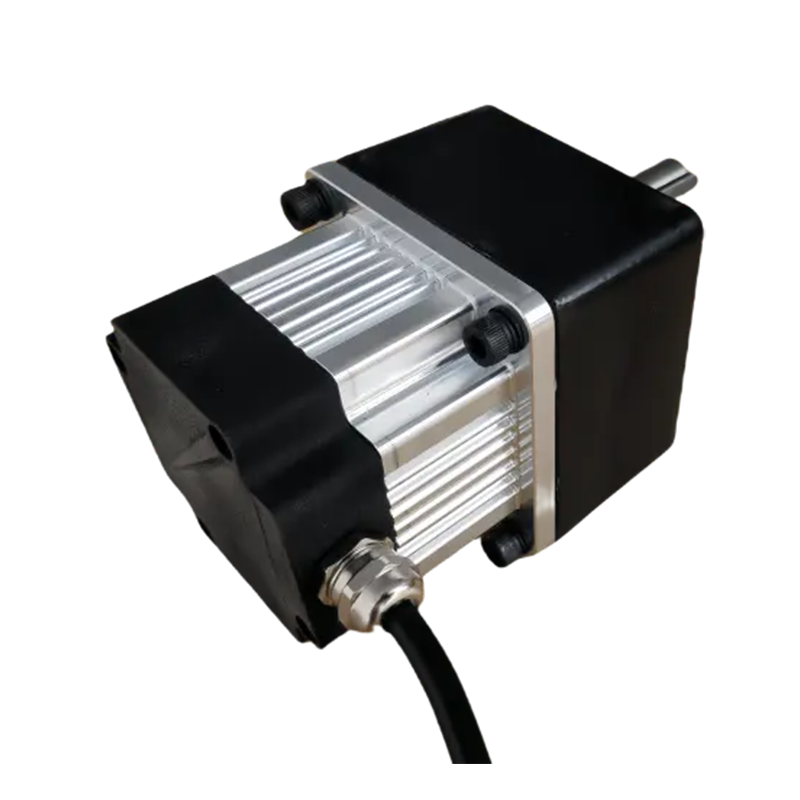

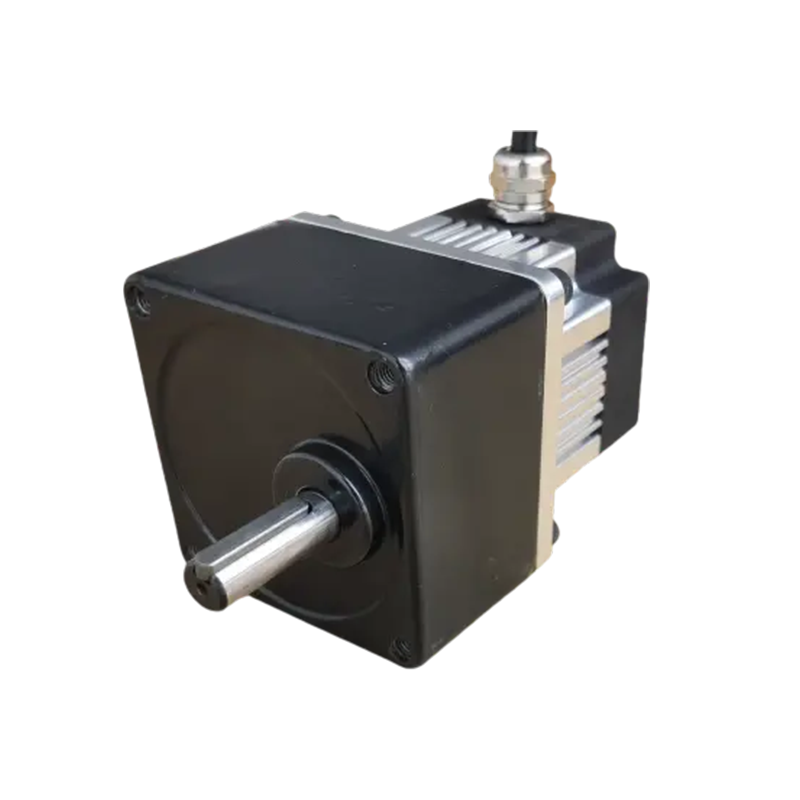

WS70

Description

Our brushless motor is ideal for speed gates, offering high efficiency with an internal drive mode for smoother, faster operation. It delivers impressive performance with a rated speed of 3000 RPM and a peak torque of 0.72 N.m, ensuring swift gate movements. The low no-load current of just 0.195 A helps in energy conservation, making it cost-effective. Additionally, its high dielectric strength and insulation resistance guarantee stable, long-term performance. Choose our motor for a reliable and efficient speed gate solution.

Contact Us
2D&3D

Retek

  • Parameter

  • Inquiry

  • Production introduction

    Our brushless motor, with its compact design and high reliability, is perfect for speed gate applications. Measuring just 85 mm in length, it fits easily into the limited space of speed gate systems. The star winding connection and inrunner rotor design enhance the motor's durability and reduce maintenance needs. It operates efficiently across a wide temperature range from -20°C to +40°C, making it versatile for various environments. With Class B and Class F insulation, it ensures long-lasting performance even in high-temperature conditions. Trust our motor for a robust, adaptable, and reliable speed gate solution.


    General Specification

    ● Winding Type: Star

    ● Rotor Type: Inrunner

    ● Drive Mode: Internal

    ● Dielectric Strength: 600VAC 50Hz 5mA/1s

    ● Insulation Resistance: DC 500V/1MΩ

    ● Ambient Temperature: -20°C to +40°C

    ● Insulation Class: Class B, Class F


    Application

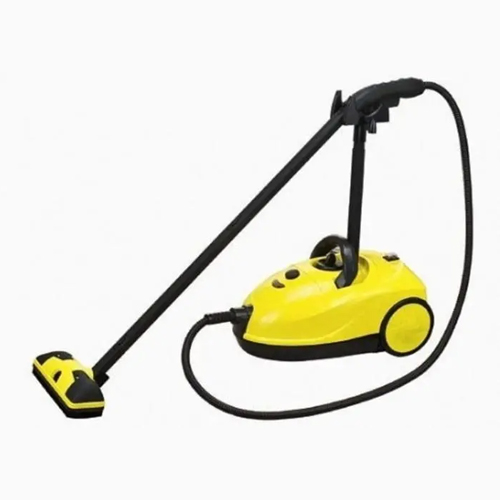

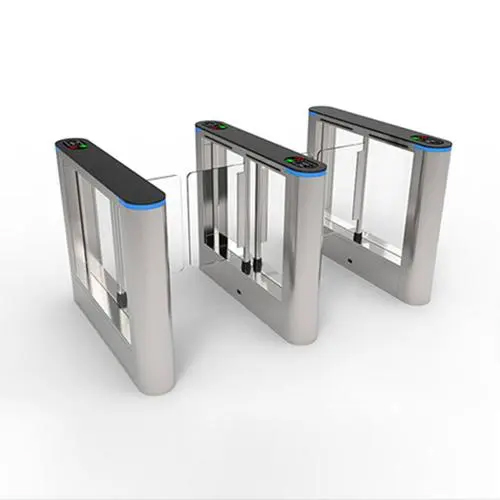

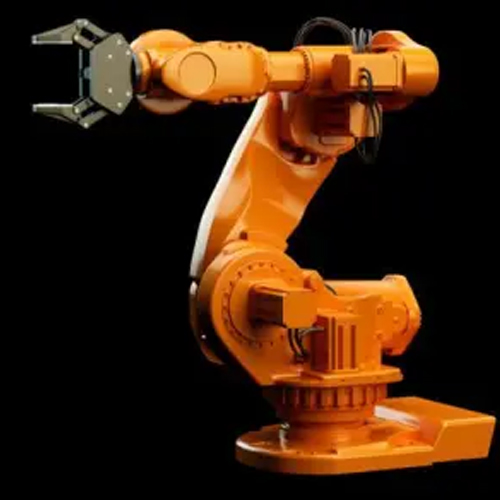

    Speed gate, industrial robots, vacuum cleaners, etc.

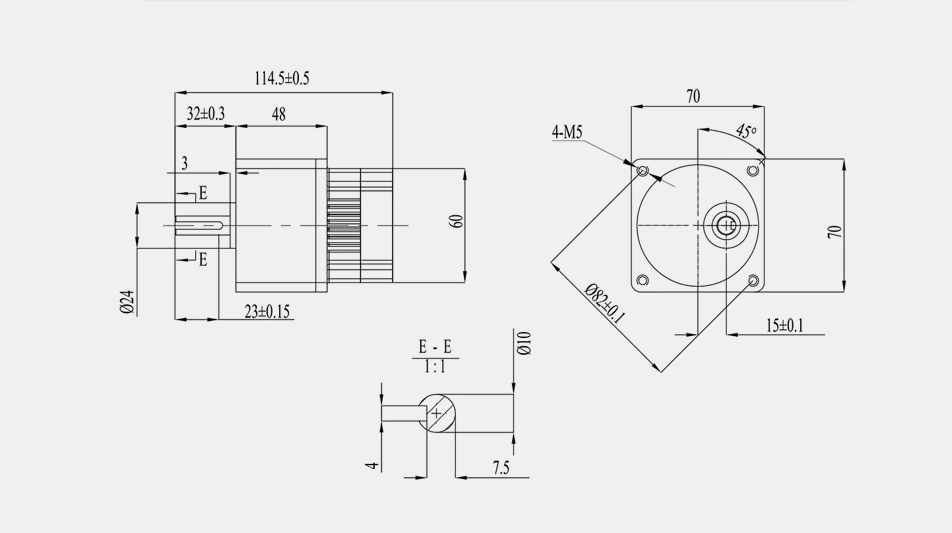

    Dimension


    Parameters

    General Specifications

    Winding Type

    Star

    Hall Effect Angle

    120

    Rotor Type

    Inrunner

    Drive Mode

    Internal

    Dielectric Strength

    600VAC 50Hz 5mA/1S

    Insulation Resistance

    DC 500V/1MΩ

    Ambient Temperature

    -20°C to +40°C

    Insulation Class

    Class B, Class F,

    Electrical Specifications



    Unit



    Rated Voltage

    VDC

    24

    Rated Torque

    N.m

    0.132

    Rated Speed

    RPM

    3000

    Rated Power

    W

    41.4

    Rated Current

    A

    2.2

    No Load Speed

    RPM

    3676

    No Load Current

    A

    0.195

    Peak Torque

    N.m

    0.72

    Peak Current

    A

    11.1

    Motor Length

    mm

    85

    Reduction Ratio

    i

    60

    Weight

    Kg
