W4249A

0/0

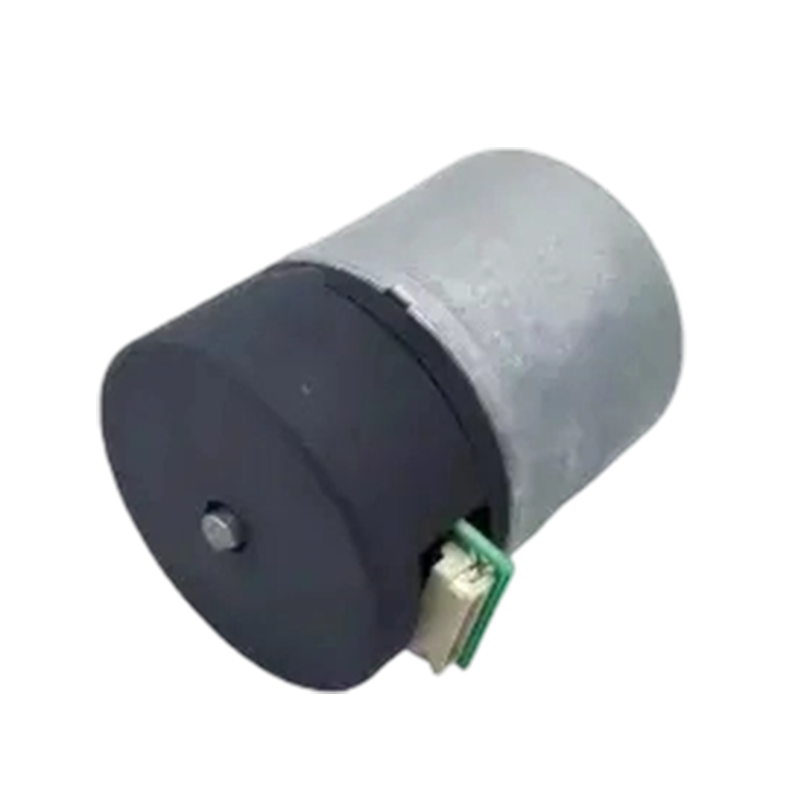

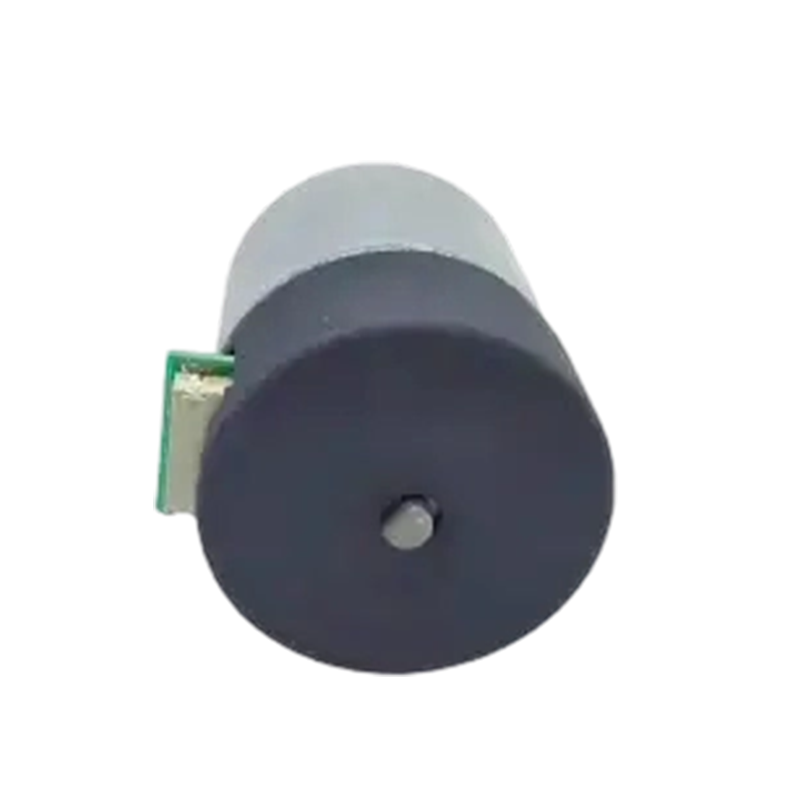

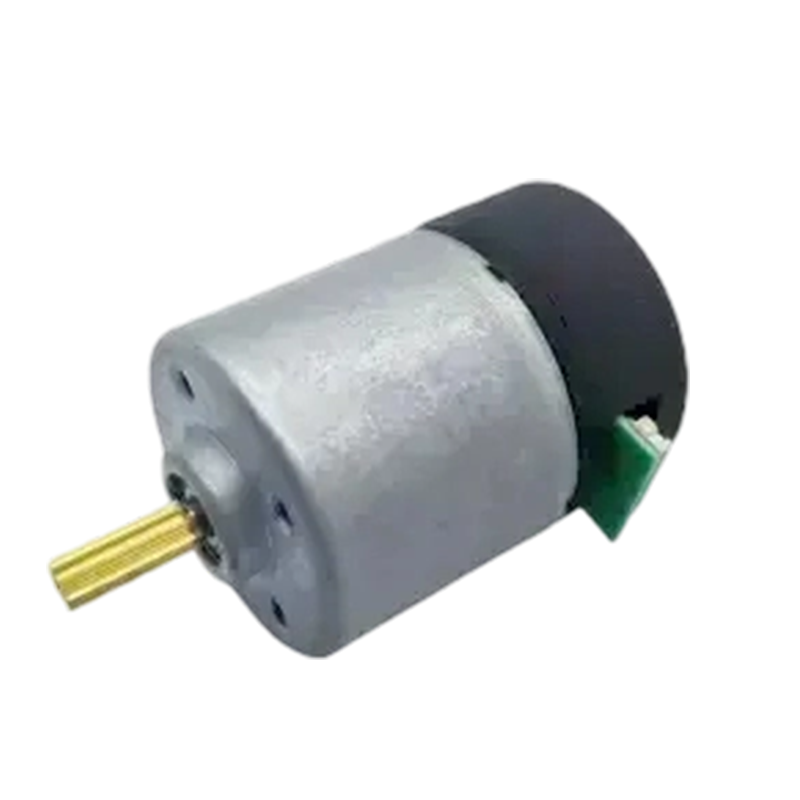

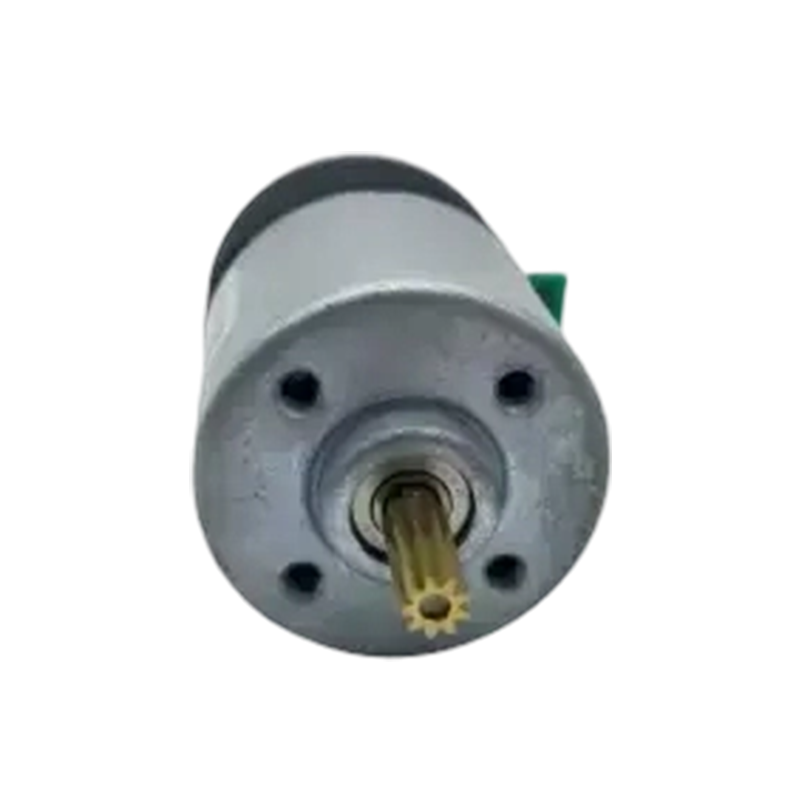

W4249A

Description

This brushless motor is ideal for stage lighting applications. Its high efficiency minimizes power consumption, ensuring extended operation during performances. The low noise level is perfect for quiet environments, preventing disruptions during shows. With a compact design at only 49mm in length, it integrates seamlessly into various lighting fixtures. The high-speed capability, with a rated speed of 2600 RPM and a no-load speed of 3500 RPM, allows for quick adjustments of lighting angles and directions. The internal drive mode and inrunner design ensure stable operation, reducing vibrations and noise for precise lighting control.

Contact Us
2D&3D

Retek

  • Parameter

  • Inquiry

  • Production introduction

    This brushless motor is perfectly suited for stage lighting systems. It operates efficiently in a wide temperature range from -20°C to +40°C, making it versatile for both indoor and outdoor events. With excellent insulation properties, including a dielectric strength of 600VAC and an insulation resistance of 500V, it ensures safe and reliable performance under high voltage conditions. The high peak current of 3A and peak torque of 0.14mN.m provide powerful output for quick, dynamic lighting adjustments. Its low no-load current of only 0.2A significantly reduces energy consumption when the motor is idle, enhancing overall energy efficiency. Additionally, with Class B and Class F insulation ratings, this motor offers superior heat resistance and longevity, reducing maintenance needs and ensuring consistent performance in demanding stage environments. These features make it an exceptional choice for dynamic, reliable, and efficient stage lighting solutions.


    General Specification

    ● Winding Type: Star

    ● Rotor Type: Inrunner

    ● Drive Mode: Internal

    ● Dielectric Strength: 600VAC 50Hz 5mA/1s

    ● Insulation Resistance: DC 500V/1MΩ

    ● Ambient Temperature: -20°C to +40°C

    ● Insulation Class: Class B, Class F


    Application

    Speed gate, industrial robots, vacuum cleaners, etc.

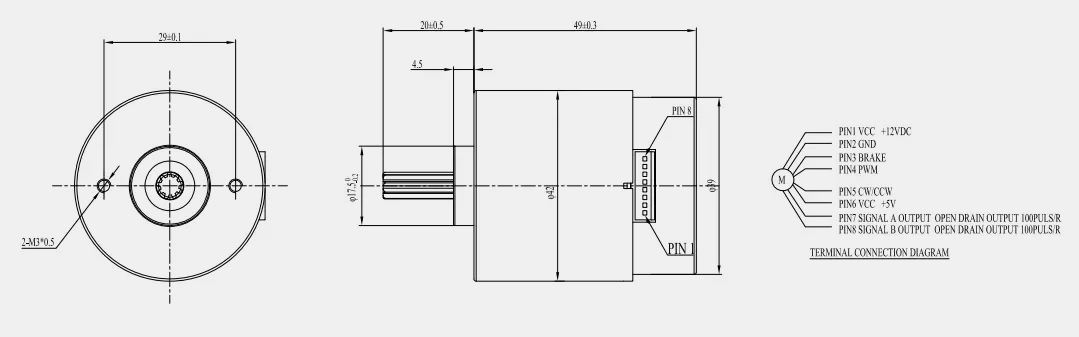

    Dimension


    Parameters

    Items

    Unit

    Model

    W4249A
    Rated Voltage

    VDC

    12
    Rated Torque

    mN.m

    35
    Rated Speed

    RPM

    2600
    Rated Power

    W

    9.5
    Rated Current

    A

    1.2
    No Load Speed

    RPM

    3500
    No Load Current

    A

    0.2
    Peak Torque

    mN.m

    0.14
    Peak Current

    A

    3
