W6062

0/0

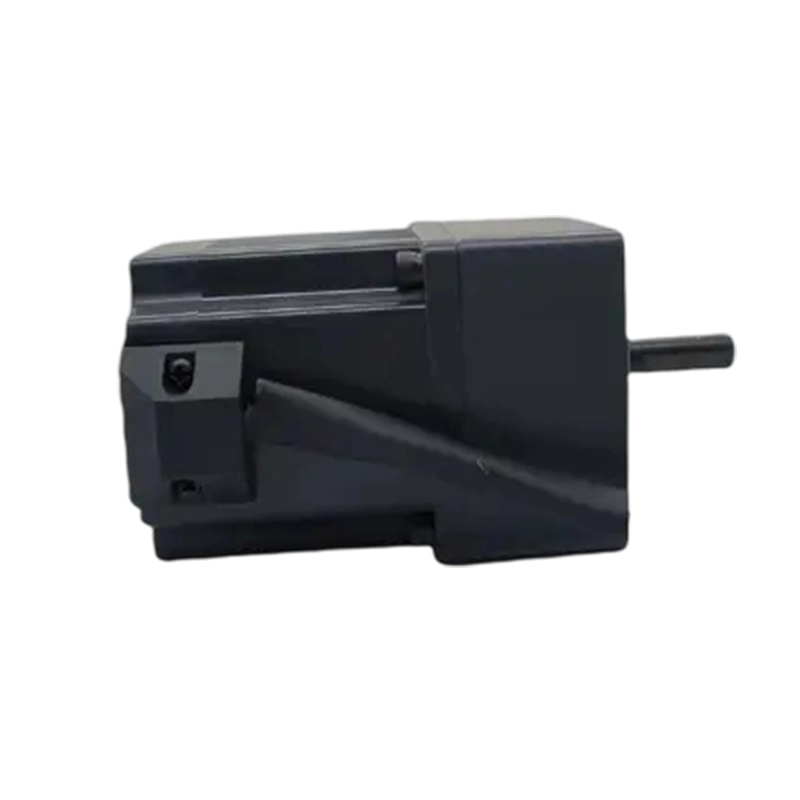

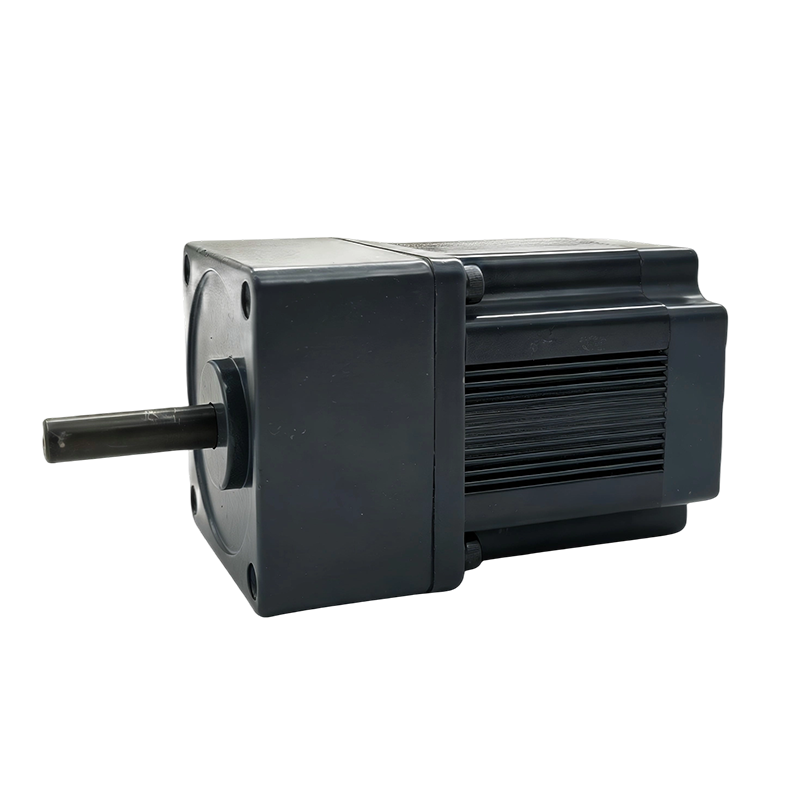

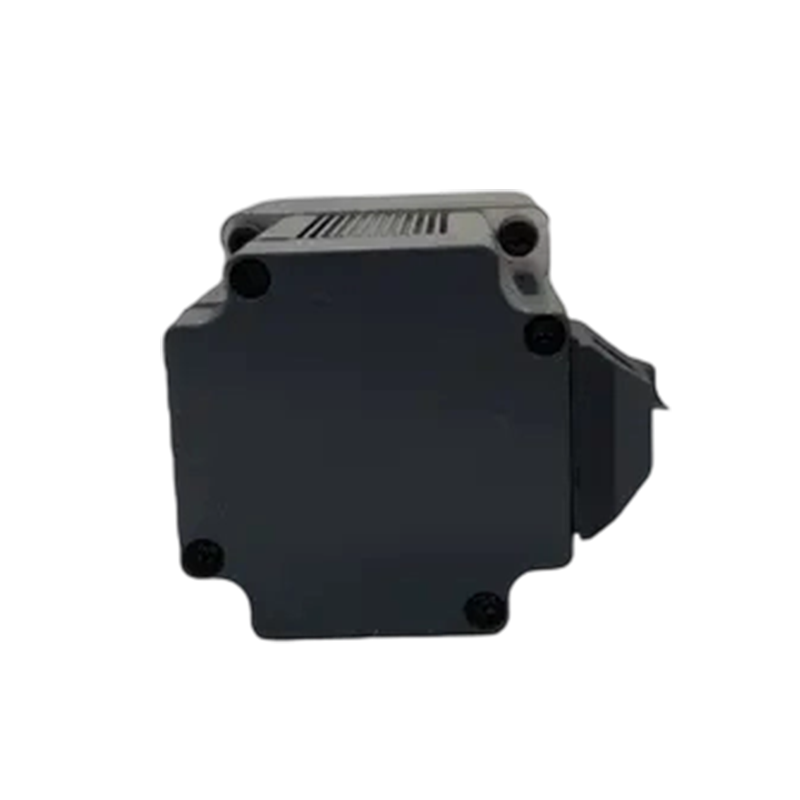

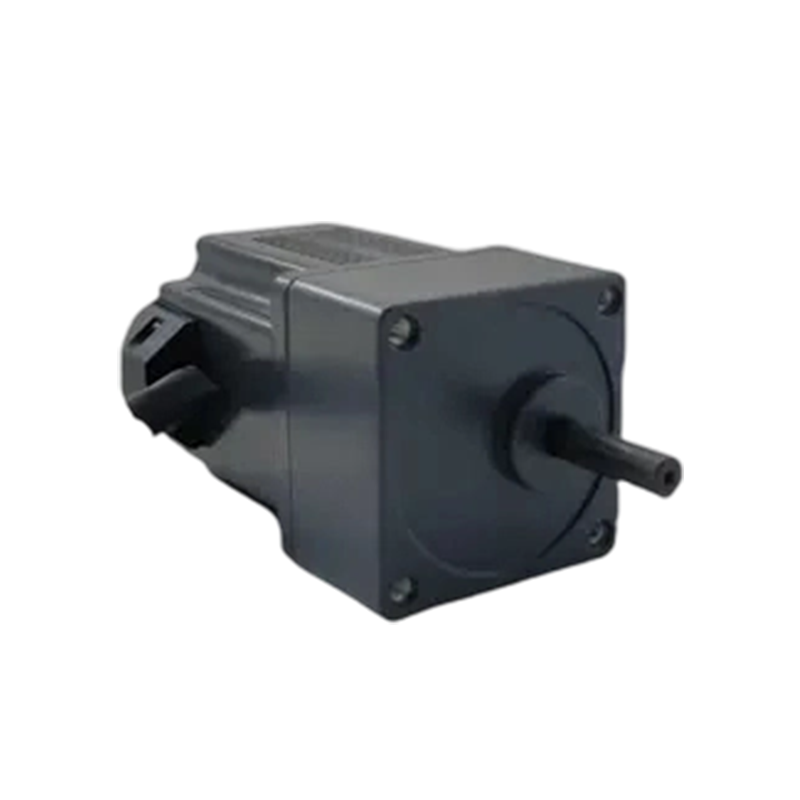

W6062

Description

Brushless motors are an advanced motor technology with high torque density and strong reliability. Its compact design makes it ideal for a variety of drive systems, including medical equipment, robotics and more. This motor features an advanced inner rotor design that allows it to deliver greater power output in the same size while reducing energy consumption and heat generation.

Key features of brushless motors include high efficiency, low noise, long life and precise control. Its high torque density means it can deliver greater power output in a compact space, which is important for applications with limited space. In addition, its strong reliability means it can maintain stable performance over long periods of operation, reducing the possibility of maintenance and failure.

Contact Us
2D&3D

Retek

  • Parameter

  • Inquiry

  • Production introduction

    Brushless motors are widely used in medical equipment, such as surgical instruments, imaging equipment, and bed adjustment systems. In the field of robotics, it can be used in joint drive, navigation systems and motion control. Whether in the field of medical equipment or robotics, brushless motors can provide efficient and reliable power support to help equipment achieve precise motion control and operation.
    In summary, brushless motors are ideal for a variety of drive systems due to their high torque density, strong reliability and compact design. Whether in medical equipment, robotics or other fields, it can provide efficient and reliable power support for equipment and help achieve precise motion control and operation.


    General Specification

    ● Rated Voltage: 36VDC

    ● Motor Withstand Voltage Test: 600VAC 50Hz 5mA/1S

    ● Rated Power: 92W

    ● Peak Torque: 7.3N.m

    ● Peak Current: 6.5A

    ● No-load Performance: 480RPM/0.8ALoad

    ● Performance: 240RPM/3.5A/3.65N.m

    ● Vibration: ≤7m/s

    ● Reduction Ratio: 10

    ● Insulation Class: F


    Application

    Medical equipment, imaging equipment and navigation systems.

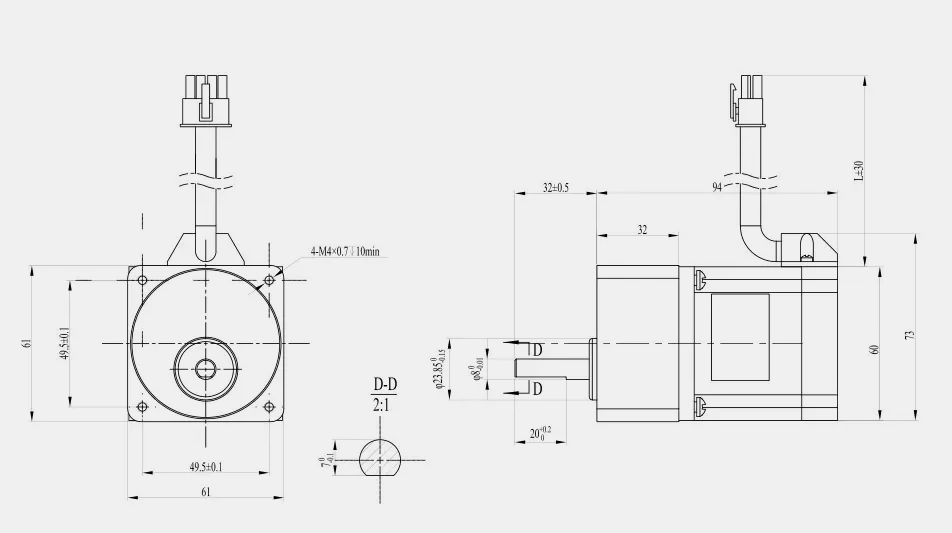

    Dimension

    Parameters

    Items

    Unit

    Model





    W6062

    Rated Voltage

    V

    36(DC)

    Rated Speed

    RPM

    240

    Rated Current

    /

    3.5

    Rated Power

    W

    92

    Reduction Ratio

    /

    10:1

    Rated Torque

    N.m

    3.65

    Peak Torque

    N.m

    7.3

    Insulation Class

    /

    F

    Weight

    Kg

    1.05
